Acoutronic AB, Data Acquisition

Ethernet / LXI

The LXI instruments in the DT88XX series offers unmatched accuracy in temperature and voltage measurements.

Channel to channel isolation enables applications in cell-level battery monitoring as well as in challenging electro-magnetic environments.

Volt / Temperature / Sound & Vibration

USB

The USB bus has proven to be a reliable and easy to use bus for data acquisition. It can provide power to the unit and allows a very flexible handling of multiple units.

The drivers are part of a software stack that allows different products with different capabilities to be exchangeable in a system. You can develop on a low cost unit and release your product with a high end unit, without any changes in the software.

	10 bit	12 bit	16 bit	24 bit	High Speed
High End	-	DT9801	DT9834	DT9837	DT9836
Low Cost	DT9810	DT9812	DT9816	-	DT9816-S

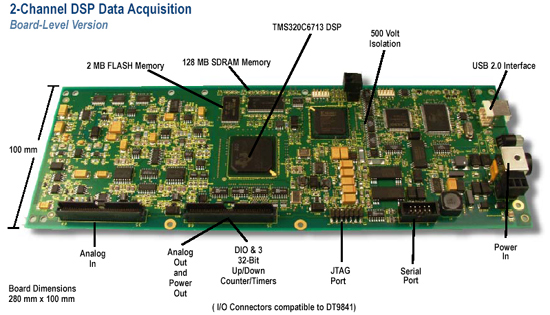

DSP

For stand alone applications and high end real time signal analysis we offer a series of DSP powered data acquisition systems.

High speed board to board communication as well as USB provides great flexibility in system design.

	DT9841	DT9841E	DT9841-VIB	DT9842/2	DT9842/8
Channels	8DI	2DI	8SE
Throughput	100kHz per channel, simultaneous sampling
Resolution	24-bit			16-bit
Input Range	±10V
A/D Type	Delta-Sigma			SAR

Embedded Data Acquisition

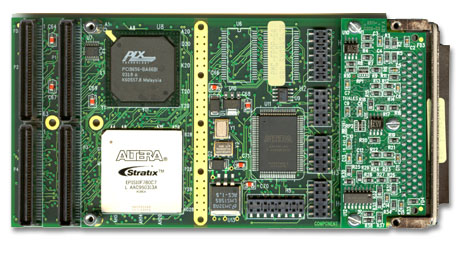

For the cPCI and VME/VXI busses and Mezzanine form factors we offer a complete range of analog and digital I/O products.
